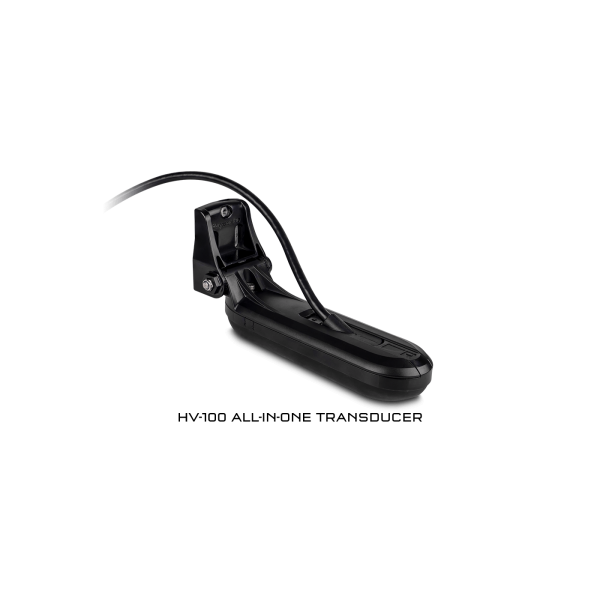

RayMarine Element 7 with HV100 Sonar / GPS COMBO
$1,199.00

Knowledge is power—and the Element™ CHIRP sonar/GPS series from Raymarine gives you the upper hand when hunting for fish and their habitat. Delivering the sharpest view of the underwater world, Element’s HyperVision™ 1.2 megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity.



GENERAL SPECIFICATIONS

Display Size 7.0" Optically Bonded LCD
Display Resolution 800 x 480 WVGA
Display Type Non-Touch
Brightness 1,500 nits
Viewing Angle                              Top 50° / Bottom 60° / Left 70° / Right 70°



PHYSICAL

Overall Dimensions
W x H x D		 240 x 135 x 62mm
(9.5 x 5.3 x 2.4 inches)
Product Weight (lbs) 3.0
Water Ingress Protection IPx6 and IPx7
Operating Temperature Range -25°C to + 55°C (-13°F to 131°F)
Storage temperature range -30°C to +70°C (-22°F to 158°F)



POWER

Voltage                                                        12V DC (8V to 16V DC)
Power Consumption (max 12V DC)        15 Watts



SENSORS

GNSS / GPS                Built-in GNSS Receiver: GPS/GLONASS

Sonar Type (Built-in) Built-in CHIRP Sonar

                                     DownVision (Standard and Hyper)

                                     SideVision (Standard and Hyper)

                                     RealVision™ 3D (Standard and Hyper)
Sonar Connection      15 pin HyperVision™ type connector

Sonar Depth        CHIRP Sonar = 274m (900 feet)
                              DownVision™ Standard = 183m (600 feet)

                              DownVision™ Hyper = 30m (100 feet)
                              SideVision™ Standard = 91m (300 feet)

                              SideVision™ Hyper = 30m (100 feet)
                              RealVision™ 3D Standard = 91m (300 feet)

                              RealVision™ 3D Hyper = 30m (100 feet)



NETWORKING

Ethernet      N/A
NMEA0183      N/A
NMEA2000      1 x NMEA2000 port (DeviceNet microC)

Supported NMEA2000 Networking

INPUT: NMEA2000 Compatible Engines (Max 2)

NMEA2000 Compatible Tank Sensors (Max 4)

Heading Sensor (for Chart Stabilization)
OUTPUT: GPS (for VHF Distress and DSC)
SeaTalkng Requires A06045 DeviceNet female (F) adapter cable - 400mm
USB N/A
Wi-Fi WiFi - 802.11 b / g / n
BlueTooth

Bluetooth 4.0 + Low Energy + Power Class 1.5



OTHER SPECIFICATIONS

Cartography Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store.
Tides & Currents Requires LightHouse LNC2, Navionics or C-MAP
Waypoint / Routes / Tracks 5,000 wpts / 200 wpt groups / 50 rts - 250 wpt max / 15 tracks - 10,000 max trk pts
Internal Memory 8GB Solid State
External Memory 1 x microSD slots - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)

Share
OOPS, WE ARE OUT OF STOCK!

Please submit your email and we will update you once it is restocked.

SKU: E70532-05
